UPS-ZEB-U1200 POWER UPS
-
Product is not available
-
5499.00 4100.00
Inclusive of all taxes
You Save: 1399. Discount 25.44%
In Stock -
-
BrandZebronics
-

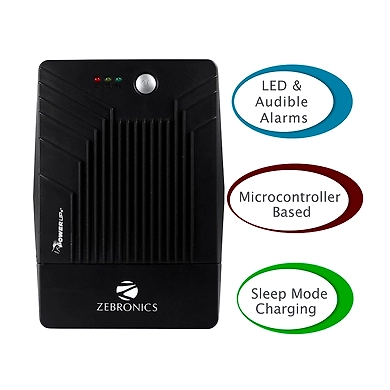

Introducing a 1000VA line-interactive UPS ZEB-U1200 which is micro-controller based and generator compatible. This UPS supports overload protection and comes with a cold start and auto restart feature. The ZEB-U1200 is designed with Buck and Boost AVR function.
-
Additional Information
Specifications
Model
ZEB - U1200
Capacity
1000 VA
Input
Voltage
220/230VAC
Voltage range
140 - 300VAC
Frequency range
60/50 Hz (auto sensing)
Output
Output voltage
220/230VAC
AC voltage regulation (Batt. mode)
±10%
Frequency range (Batt . mode)
60 Hz or 50 Hz ±1 Hz
Transfer time
Typical 4-8 ms
Waveform (Batt . mode)
Simulated sine wave
Battery
Battery type & number
12 V/7 Ah x 2
Backup time (One PC load @ 100 W)
30 min.
Typical recharge time
4-6 hours recover to 90% capacity
Indicators
AC Mode
Green lighting
Battery mode
Yellow flashing
Fault
Red light
Alarm
Battery mode
Sounding every 10 seconds
Low battery
Sounding every second
Over load
Sounding every 0.5 seconds
Fault
Continuously sounding
Protection
Full protection
Overload, discharge, and overcharge
Physical
Dimension (D X W X H)
320 x 130 x 182 mm
Net weight (kgs)
8.2
Environment
Humidity
0-90% RH @ 0-40°C (non-condensing)
Noise level
Less than 40dB
-
