MBZ13-G31 ZEB 775 SOCKET MOTHER BOARD WITH LAN + SATA
-
Product is not available
-
3999.00 2200.00
Inclusive of all taxes
You Save: 1799. Discount 44.99%
In Stock -
-
BrandZebronics
-
SPECIFICATION
CPU
LGA775 for Intel® Core™ 2 Extreme, Core™ 2 Quad, Core™ 2 Duo, Pentium® Dual Core, Pentium® D, Pentium® 4,
Celeron® (Conroe-L) and next generation 45nm Yorkfield & Wolfdale Processors.
Compatible with all 1333/1066/800/533 MHz FSB CPUs
Supports Hyper-Threading Technology
Chipset
Intel® Q33 + ICH7
Super I/O: Winbond W83627DHG chip
Memory
Dual Channel DDR2 memory technology
2 x DDR2 DIMM slots
Supports DDR2 800/667 non-ECC, un-buffered memory
Max. capacity of system memory 4GB
BIOS
Supports "Plug and Play"
Advanced power management
Graphics
Intel® Graphics Media Accelerator 3100
Pixel Shader 2.0, DirectX 9.0
Audio
Realtek ALC883
5.1 Channel
LAN
Realtek® RT8105S Ethernet Controller (10/100Mbit)
Expansion Slots
1 x PCI Express x16 slot
2 x 2.2 PCI slots
Connector
1 x 24-pin ATX power connector
1 x 4-pin ATX 12V power connector
1 x floppy connector
1 x IDE connector (for 2 PATA devices)
4 x SATA 3Gb/s connectors
1 x CPU fan connector
1 x system fan connector
1 x front panel connector
1 x front audio connector
1 x USB 2.0 header for additional 2 USB 2.0 ports (by cables)

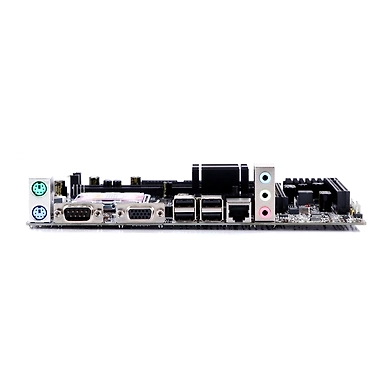

Rear Panel I/O
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
1 x Serial Port
1 x Parallel Port
1 x VGA Port
4 x Ready-to-Use USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jack: Line in / Front Speaker / Microphone
Support CD
Drivers
Accessories
Quick Installation Guide, I/O Shield
1 x ATA 100 Cable
1 x SATA Data Cable
-
